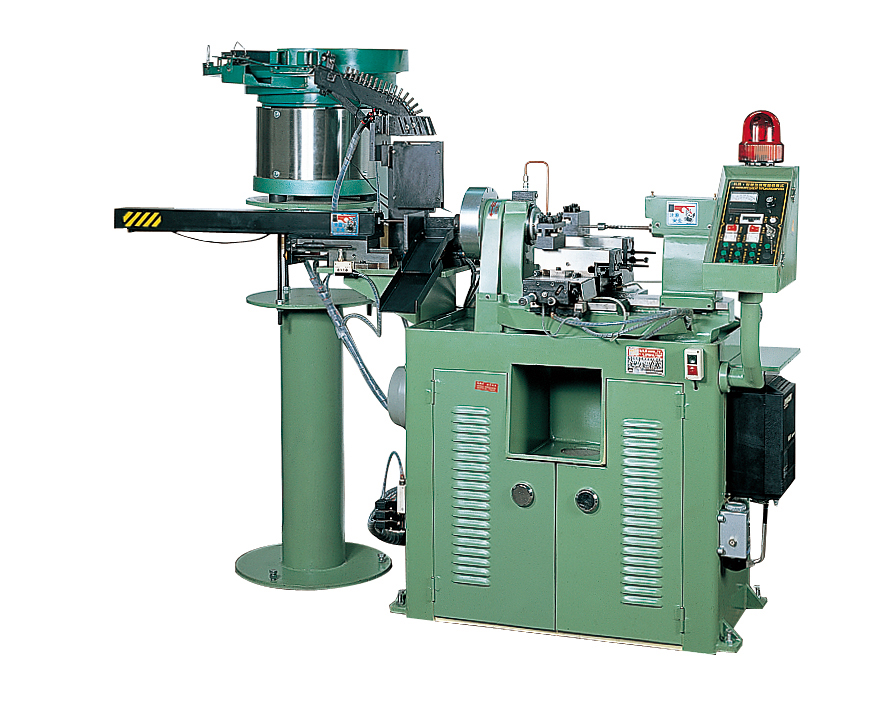

TYPE GW-25BV

Model ID：TYPE GW-25BV

Short head microcomputer-instructed oil-pressure auto lathe able to manufacture with special parts production feeding back from main spindle.

■Specifications
(Model)		GW-25BL/25BV
Maximum chucking capacity(mm)	Bar stock	φ25
	Square	17
	Hexagonal	21
Spindle speeds(RPM)		2371/1674/1122/652

Tool holder slides(m/m)	Maximum main slide travel	65
	(Forward and backward)
	Maximum front cross slide travel	85
	Front cross slide swivels	360。
	Maximum rear cross slide travel	75
Tailstock(m/m)	Tailstock spindle dia.	φ30
	Tailstock spindle taper.	MT.NO.2
	Tailstock spindle travel	130
Base to centers high(m/m)		190

Distance between centers(m/m)		540

Motor(HP)		2HP

Machine dimentsions(LWH) (m/m)		920600750

Net weight(kgs)		800

Design & specifications are subject to change without prior notice.
